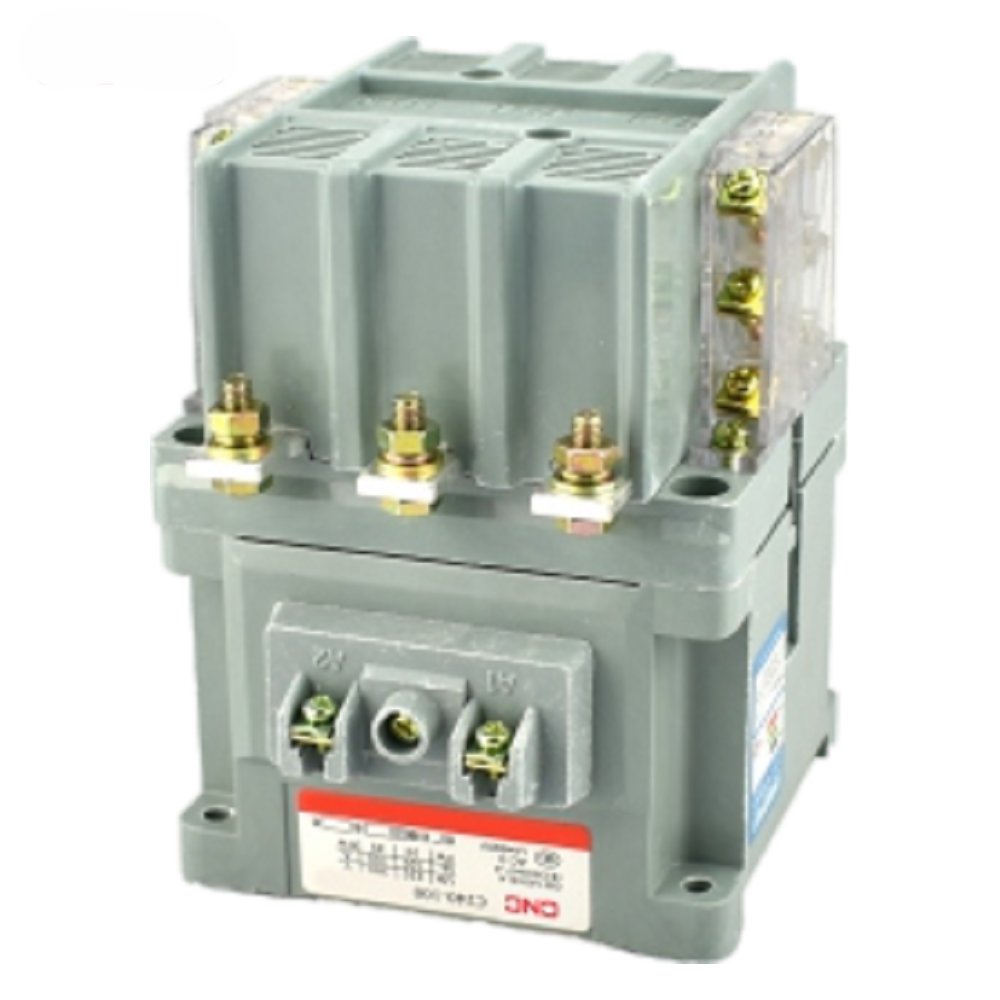

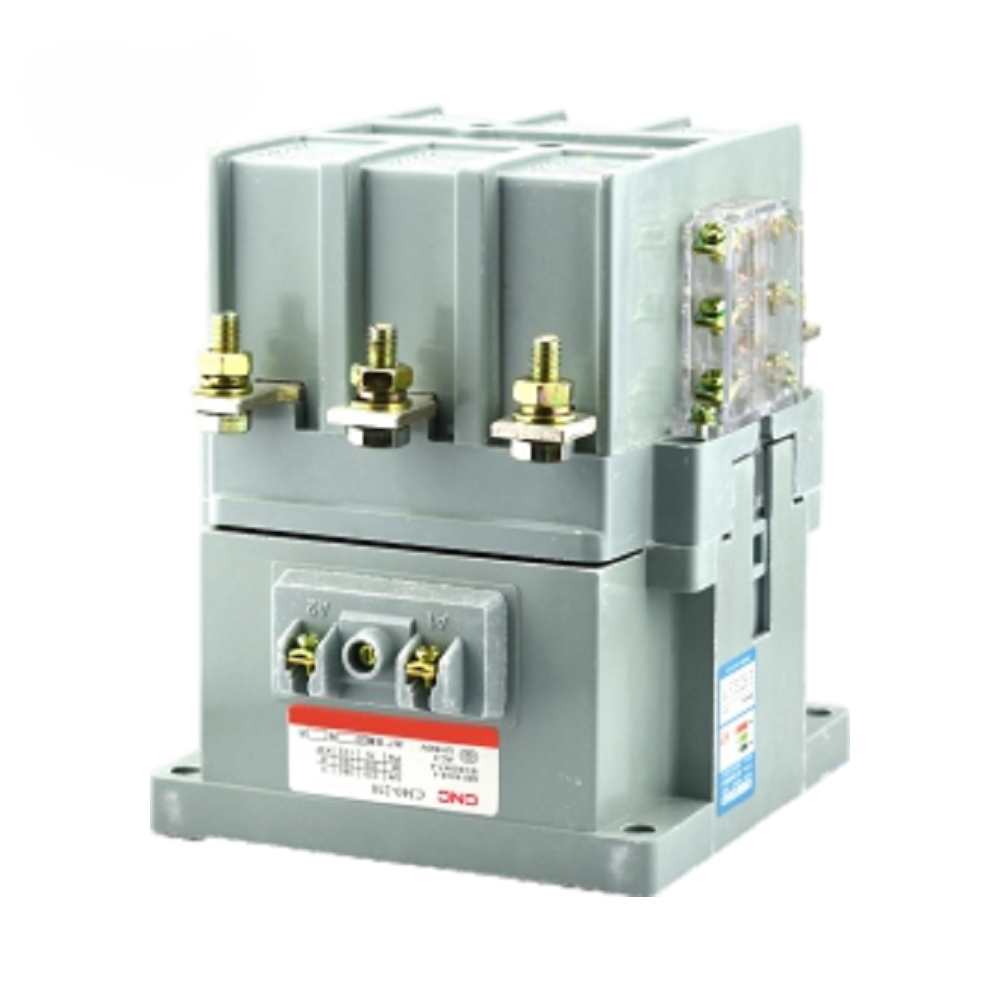

CJ40 AC Contactor

Tên sản phẩm: CJ40 AC Contactor

Đơn giá:

THÔNG TIN CHI TIẾT

CJ40 AC Contactor

General

Cj40 series AC contactor is mainly used for remote making & breaking circuits in power lines with AC 50Hz (or 60Hz), rated working voltage up to

690V (or 1140V), rated working current up to 1250A, and protect circuit from overload when assembling with thermal over-load relay or electronic protection device.

Standard: IEC 60947-4-1

Product features

CJ40-63-1000 AC contactor is an open type straight acting double break-point structure. Auxiliary contacts are installed on both sides of the main contact as independent components, which are electrically separated. The iron core has a U- shaped permanent air gap.

The base of CJ40-630A and above is die-cast aluminum alloy, screw mounted; The base of CJ40-63-125 is made of unsaturated polyester fiberglass reinforced plastic, which can be installed by screws or using TH75 guide rails. The arc extinguishing

cover is composed of arc resistant plastic and iron grid, which has the advantages of high breaking ability and high reliability.

Operating conditions

Ambient temperature: -5℃~+40℃;

Air conditions: At mounting site, relative humidity not exceed 50% at the

maximum temperature of +40℃ . For the wettest month, the maximum relative

humidity averaged shall be 90% while the lowest temperature averaged in that

month is +20℃,special measures should betaken to occurrence of condensation.

Altitude: ≤2000m;

Pollution grade: 3

Mounting conditions: inclination between the mounting plane and the vertical plane not exceed ±5º;

The product should locate in the places where there are no obvious impact and shake.

The auxiliary code is composed of five parts and can be selected in the following order as required: The first part, “Y” is general type, default type; “N” is reversible type; The second part uses 1 digit to represent the pole number of the main circuit: 3 means 3 poles, default type; 4 means 4 poles; The third part uses 2 digits to indicate the highest rated working voltage: “06” means 690V, default type; “11”means 1140 v; The fourth part represents the rated control power supply voltage, AC represents AC; DC means DC, after the letter with the value of the rated control power supply voltage, AC380 is default type; The fifth part, the type and quantity of auxiliary contact are represented by letter F and 2 digits. The first digit represents the number of NO auxiliary contact, and the last digit represents the number of NC auxiliary contact. F42 can be omitted. Note: This item includes two parts, the number of main contacts and the number of auxiliary contacts, which are respectively expressed by numbers as follows: (–) indicates: – Number of NO main contact, number of NC main contact, – Number of NO auxiliary contact, number of NC auxiliary contact.

Technical data

Type	Frame size	Rated insulation voltage Ui(V)	Rated operation voltage Ue(V)	Rated thermal current(A)	Ie (A)under intermittent periodic mode				Pe(kW) underAC-3	Ie(A) under non-stop
					AC-1	AC-2	AC-3	AC-4
CJ40-63	125	690	220	80	80	63	63	63	18.5	80
			380						30
			660						55
CJ40-80			220			80	80	80	22
			380						37
			660			63	63	63	55
CJ40-100			220	125	125	100	100	100	30	125
			380						45
			660			80	80	80	75
CJ40-125			220			125	125	125	37
			380					110	55
			660			80	80	80	75
CJ40-160	250	690	220	250	250	160	160	160	45	250
			380						75
			660			125	125	125	110
CJ40-200			220			200	200	200	55
			380						90
			660			125	125	125	110
CJ40-250			220			250	250	250	75
			380					225	132
			660			125	125	125	110
CJ40-315	500	690	220	500	500	315	315	315	90	500
			380					250	160
			660						300
CJ40-400			220			400	400	400	110
			380					315	220
			660			315	315		300
CJ40-500			220			500	500	500	150
			380					400	280
			660			315	315	315	300
CJ40-630	1000	690	220	800	630	630	630	630	200	630
			380					500	335
			660			500	500	500	475
CJ40-800			220		800	800	800	800	250	800
			380					630	450
			660			500	500	500	475
CJ40-1000			220	1000	1000	/	1000	/	360	1000
			380						625
			660				630		475
CJ40-1250	1250		220	1250	1250	/	1250	/	400	1250
			380						720
			660				800		520
CJ40-125/11	1250	1140	125	125	125	40	40	40	55	125
CJ40-250/11	250		250	250	250	80	80	80	110	250
CJ40-500/11	500		500	500	500	160	160	160	220	500
CJ40-1000/11	1000		1000	1000	1000	/	400	/	600	1000

Overall and mounting dimensions (mm)

Overall and mounting dimensions of CJ40-63~1250

Type	Overall size Max			Mounting size			Install rail	Safety zone Fmin
	A	B	C	a	b	Φ		380V	660V
CJ40-63-125	116	143	154	100	90	5.8	TH75	20	40
CJ40-160-200	146	186	184	130	130	9	/	30	40
CJ40-250								40	60
CJ40-315-400	190	235	230	160	150	9		40	60
CJ40-500								50	70
CJ40-630-1250	245	345	288	210	180	11		0	0
CJ40-63/4-125/4	143	143	154	128	90	5.8	TH75	20	40
CJ40-63/4-200/4	187	186	184	170	130	9	/	30	40
CJ40-250-4								40	60
CJ40-315/4-400/4	236	235	230	216	150	9		40	60
CJ40-500/4								50	70
