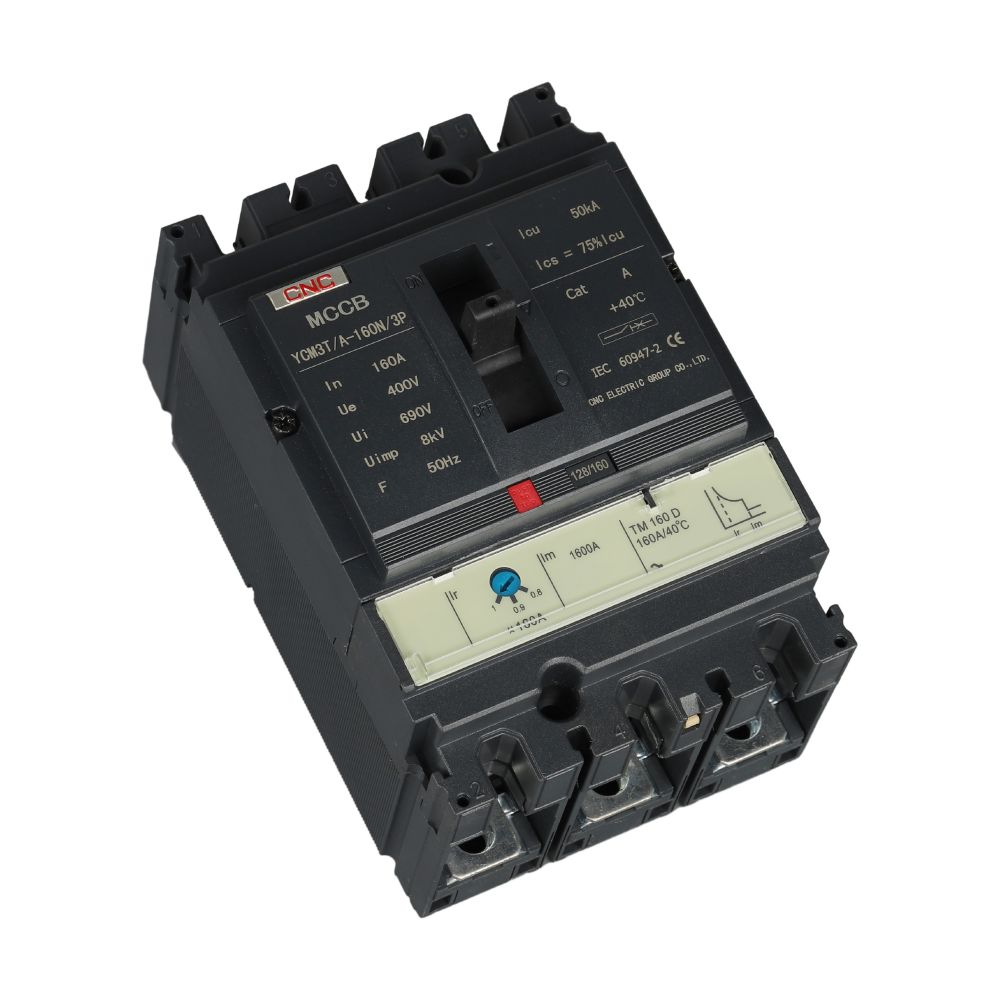

YCM3T/A Molded Case Circuit Breaker

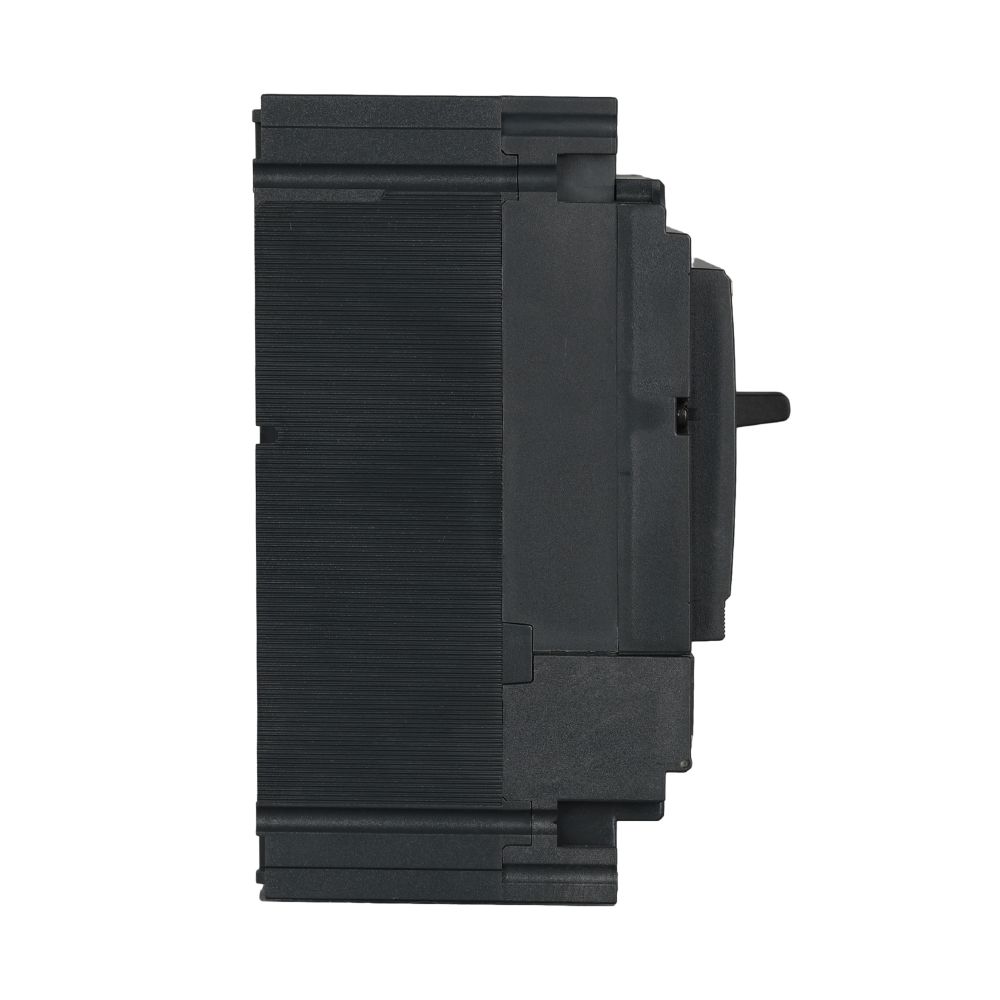

YCM3T/A Molded Case Circuit Breaker - Ảnh 3

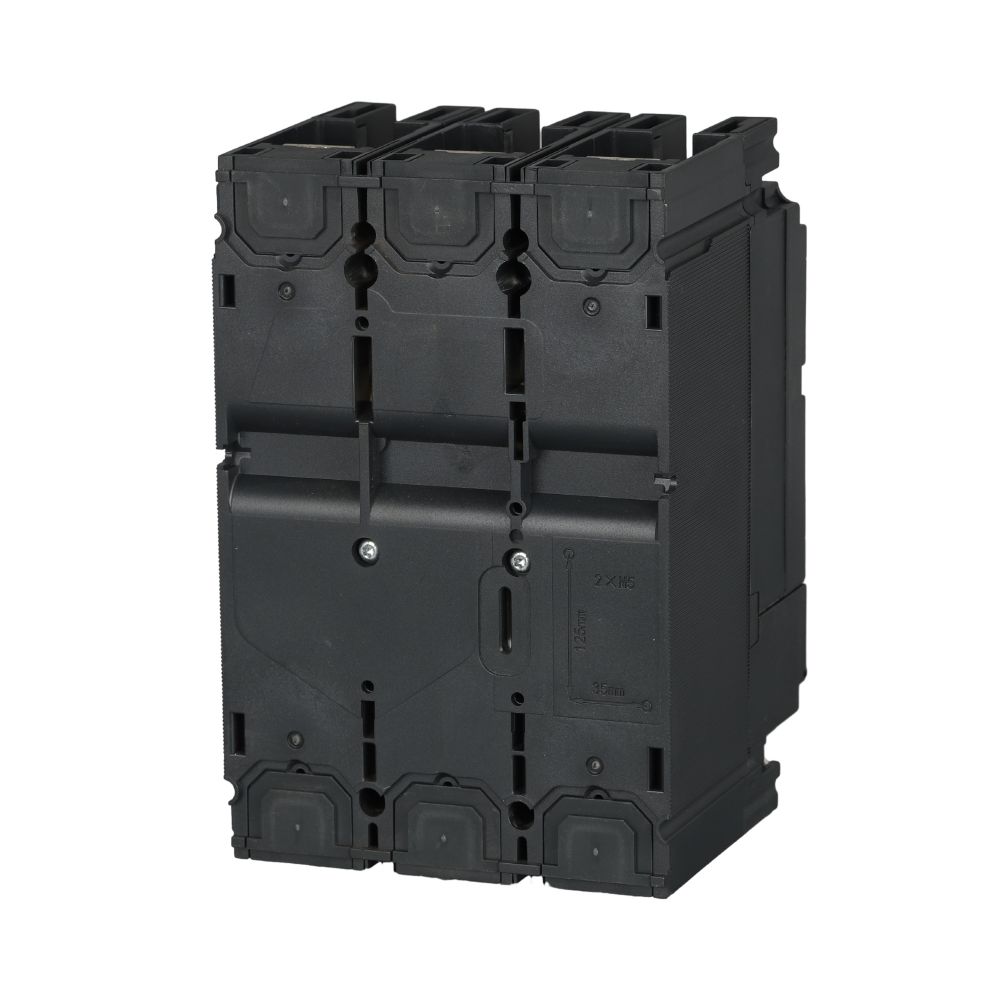

YCM3T/A Molded Case Circuit Breaker - Ảnh 4

Tên sản phẩm: YCM3T/A Molded Case Circuit Breaker

Đơn giá:

THÔNG TIN CHI TIẾT

YCM3T/A Molded Case Circuit Breaker

General

Operating conditions

YCM3 Series moulded case circuit breaker, is new products, with small compact, modular, high break, double breakpoints, zero arcing, green environmental protection. Suitable for AC 50Hz, 60Hz, rated operating voltage 690V and below, rated current 12.5A to 1600A distribution network, used to distribute electrical energy and protection lines and power supply equipment from overload, short circuit and undervoltage failure hazards. It can also be used as a non-frequent conversion of the line under normal conditions and in the infrequent start of the motor.

YCM3 circuit breaker equips with intelligent controller as well, which not only makes its current adjustable but also grants protection against overload(long delay), short

circuit(short delay), short-circuit(instantaneous) & undervoltage. It’ll certainly improve the entire power system’s reliability, continuity & security. RS485 interface,MODBUS-RTU protocol.With MODBUS modul equipped,customers can choose options as below. Remote signal: Switching ON/OFF, tripping, alarm & malfunctional singal indication.

Remote control: Switching ON/OFF,reset.Remote test: 3-phase cuttent & N-pole current, grounding current. Remote adjustment: accept and execute remote command to debug remote control .Tripping unit memory recording function, last three time’ tripping records can be well traced. YCM3 circuit breaker also obtains isolation function(Can be used as an alternative load switch).

Standard: IEC 60947-2.

Operating conditions
1.The altitude of the installation site does not exceed 2000m;
2.The YCM3 thermomagmetic type with temperatureof the surrounding medium is-5℃~+40℃,and the average temperature of 24 h is not more than +35℃.Threlative humidity of the air at the installation site does not exceed 50%atmaximum temperature of +40℃;at lower temperatures,there may be a higherelative humidity;the average minimum temperatureof the wettest month does ncexceed +25℃ for the average of the month The maximum relative humidity is ncmore than 90%,and the condensation on the surface of the product due ttemperature changes is considered.
3.YCM3 intellgent type with temperature of the surrounding medium is40℃~+80℃.
4.The product is used in non-explosive hazardous media,and the media does nothave enough to corrde metals and destroyinsulating gases and conductve dust.
5.In places where there is rain protection and no water vapor.
6.The installation category is Class Ⅲ.
7.The pollution level is level 3.
8.The basic installation of the circuit breaker isvertical (ie vertical)or horizontal
(iehorizontal).
9.The incoming line is either the up line orthe down line.
10.Circuit breakers can be divided into fixed and plug-in types.

Note：

Other requirements at the time of ordering are subject to textual instructions.

Release:

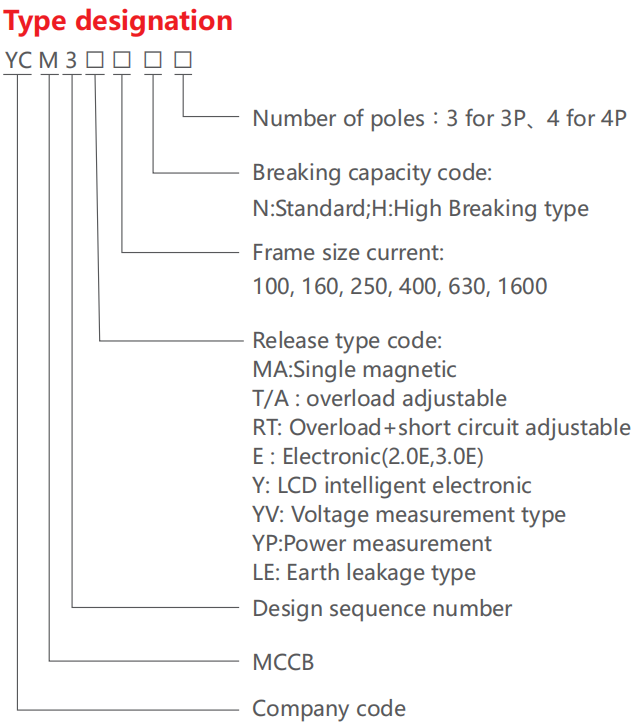

The type of stripper is divided into: thermal magnetic stripper and lntelligent stripper 1. Thermal magnetic stripper is divided into types according to protection type

Distribution Protection Code: TM; Motor (single-magnetic) protection Code: MA. 2. Intelligent stripper According to the function is divided into three kinds:

ordinary type, liquid crystal type and with voltage detection type.

Circuit breaker protection settings are shown in table 1

Type of Stripper	Type	Overload longdelay settingcurrent(IR)	Overload longdelay (6·IN)Fix buckletime	Short-circuitshorter delaytuning current(ISD)	Short-circuitshorter delaysetting time(TSD)	Short-circuittransienttuning current(Ii)	GroundingProtectionsetting current(IG)	GroundingProtectionsetting time(TG)
MA:Single magnetic	YCM3MA100 YCM3MA160 YCM3MA250 YCM3MA-400 YCM3MA-630	/	/	/	/	12In	/	/
T/A:Overload adjustable	YCM3T/A-100 YCM3T/A-160 YCM3T/A-250	(0.8~1)In	/	/	/	10In	/	/
RT:Overload+short circuit adjustable	YCM3RT-250 (200~250A)	(0.8~1)In	/	/	/	(5~10)In	/	/
RT:Overload+short circuit adjustable	YCM3RT-400 YCM3RT-630	(0.7~1)In	/	/	/	(5~10)In	/	/
E(2.0E):Electronic 2.0E	YCM3E-100 2.0E YCM3E-160 2.0E YCM3E-250 2.0E YCM3E-400 2.0E YCM3E-630 2.0E	(0.4~1)In	/	(1.5~10)Ir	/	12In	/	/
E(2.0E):Electronic 2.0E	YCM3E-1250 2.0EYCM3E-1600 2.0E	(0.4~1)In	0.5~24s	(1.5~10)Ir	/	12In	/	/
E(3.0E):Electronic 3.0E	YCM3E-100 3.0E YCM3E-160 3.0E YCM3E-250 3.0E YCM3E-400 3.0E YCM3E-630 3.0E	(0.4~1)In	0.5~12s	(1.5~12)Ir	0.1s~0.4s	(2~15)In	(20%~100%)In	/
E(3.0E):Electronic 3.0E	YCM3E-1250 3.0EYCM3E-1600 3.0E	(0.4~1)In	0.5~24s	(1.5~10)Ir	0.1s~0.4s	(2~15)In	Optional	/
Y:LCD display， Current typeYV:LCD display， Voltage typeYP:LCD display， Power type	YCM3Y(YV、YP)-100 YCM3Y(YV、YP)-160 YCM3Y(YV、YP)-250 YCM3Y(YV、YP)-400 YCM3Y(YV、YP)-630	(0.4~1)In	0.5~12s	(1.5~12)Ir	0s~0.4s	(2~15)In	(20%~100%)In	0s~0.4s
	YCM3Y(YV、YP)-1250YCM3Y(YV、YP)-1600	(0.4~1)In	0.5~24s	(1.5~12)Ir	0s~0.4s	(2~15)In	(20%~100%)In	0s~0.4s

YCM3 parameter measurement function is shown in table 2

function type	functional category	Specific functions	Monomagnetic	Thermomagnetic		Electronic
function type	functional category	Specific functions	MA	T/A	RT	2.0E	3.0E	Y	YV	YP
Protection function	Current (A)	overload protection	/	■	■	■	■	■	■	■
		Short circuit short time delay protection	/	/	/	■	■	■	■	■
		Instantaneous protection	■	■	■	■	■	■	■	■
		Overload warning	/	/	/	■	■	■	■	■
		Neutral line protection
		Grounding protection	/	/	/	/	/	■	■	■
		Current imbalance protection	/	/	/	/	/	/	■	■
	Voltage(v)	Zero break protection	/	/	/	/	/	/	■	■
		Voltage imbalance protection	/	/	/	/	/	/	■	■
		Overfrequency and underfrequency protection	/	/	/	/	/	/	■	■
		Phase sequence protection	/	/	/	/	/	/	■	■
Measurement function	Current (A)	Phase current	/	/	/	/	/	■	■	■
		Neutral current	/	/	/	/	/
		Percentage of ground faults	/	/	/	/	/	/	■	■
		Current imbalance rate of each phase	/	/	/	/	/	/	■	■
	Voltage(V)	Line voltage	/	/	/	/	/	/	■	■
		Phase voltage	/	/	/	/	/	/	■	■
		Average line voltage	/	/	/	/	/	/	■	■
		Average phase voltage	/	/	/	/	/	/	■	■
		Voltage imbalance rate	/	/	/	/	/	/	■	■
		phase sequence	/	/	/	/	/	/	■	■
		frequency	/	/	/	/	/	/	■	■
	Power	Meritorious	/	/	/	/	/	/	/	■
		Reactive power	/	/	/	/	/	/	/	■
		Apparent	/	/	/	/	/	/	/	■
		Power factor and	/	/	/	/	/	/	/	■
	Quantity of electricity	Active, reactive, apparent	/	/	/	/	/	/	/	■
Maintenance function	Accumulated function	Various types of protection tripping times, displacement times, etc	/	/	/	/	/	/	■	■
	Event recording	Trip records, alarm records, displacement records, etc	/	/	/	/	/	/	■	■
	Contact wear	Contact wear record	/	/	/	/	/	/	■	■
	Number of operations	Record of operation times	/	/	/	/	/	/	■	■
	RTC function	Realtime clock	/	/	/	/	/	/	■	■
	Auxiliary/alarm detection function	Auxiliary, alarm detection, and display of circuit breaker status	/	/	/	/	/	/
	Electric operation control function	Remote electric operation control function	/	/	/	/	/	/	■	■
	human-computer interaction	LED indication	/	/	/	/	/	■	■	■
		LCD display	/	/	/	/	/	■	■	■
		Key settings	/	/	/	/	/	■	■	■
	communication function	Moedbus RTU DL/T645	/	/	/	/	/		■	■

Type			YCM3-100			YCM3-160			YCM3-250
Number of poles			3P, 4P			3P, 4P			3P, 4P
Shell frame maximum rated current Inm(A)			100			160			250
Rated current In(A)			12.5/16/2025/32/40 50/63/80/100	100		16/20/25/32 40/50/63/80 100/125/160	160		100/160/180 200/225/250	250
Type of Stripper			Thermal or single-magnetic	Intelligent type		Thermal or single-magnetic	Intelligent type		Thermal or single-magnetic	Intelligent type
Rated insulation voltage Ui(V)			800			800			800
Rated impulse withstand voltage Uimp(kV)			8			8			8
Rated voltage Ue(V)50-60Hz			AC415/500/690			AC415/500/690			AC415/500/690
Flying arc Distance(mm)			0			0			0
Short circuit breaking capability level			N		H	N		H	N	H
Rated limit Short		AC415V	50		85	50		85	50	85
circuit Breaking capacity Icu(kA)		AC500V	35		50	50		60	50	60
		AC690V	6		6	6		6	6	6
Rated running short circuit Breakingcapacity Ics(kA)		AC415V	75% Icu
		AC500V
		AC690V
Rated short time resistant current Icw(kA) (1s)			/	3 /			3 /			3
Working with categories			A			A			A
Remaining Current protection			Additional Residual current protection module(See P78-79 LE remaining current module for specific parameters)
Electrical Life Test	AC415V		10000	10000		8000	8000		8000	8000
	AC690V		1500	1500		1500	1500		1500	1500
Number of mechanical life			20000	20000		20000	20000		20000	20000
Dimensions	Wide(3P/4P)		105/140			105/140			105/140
	Long		161			161			161
	High		86			86			86
Mode of operation	Manual Direct operation、 Rotate handle operation、 Electric operating mechanism
Mounting method	Fixed type(front of plate)、 Fixed type(rear of plate)、 Plug-in(front of plate)、 Plug-in(rear of plate)

Type			YCM3-400		YCM3-630		YCM3-1600
Number of poles			3P, 4P		3P, 4P		3P, 4P
Shell frame maximum rated current Inm(A)			400		630		1600
Rated current In(A)			250/315/ 350/400	400	400/500/ 600/630	630	800/1000/1250/1600
Type of Stripper			Thermal or single-magnetic	Intelligent type	Thermal or single-magnetic	Intelligent type	Intelligent type
Rated insulation voltage Ui(V)			1000		1000		1000
Rated impulse withstand voltage Uimp(kV)			8		8		8
Rated voltage Ue(V)50-60Hz			AC415/500/690		AC415/500/690		AC415/500/690
Flying arc Distance(mm)			0		0		0
Short circuit breaking capability level			N	H	N	H	N
Rated limit Short circuitBreaking capacity Icu(kA)		AC415V	50	85	50	85	50
		AC500V	30	50	35	50	35
		AC690V	10	15	10	100	20
Rated running short circuit Breakingcapacity Ics(kA)		AC415V	75% Icu
		AC500V
		AC690V
Rated short time resistant current ICW (kA) (1s)			/	5	/	8	8
Working with categories			A	B	A	B	B
Remaining Current protection			Additional Residual current protection module(See P78-79 LE remaining current module for specific parameters)
Electrical Life Test		AC415V	6000	6000	5000	5000	1500
		AC690V	1000	1000	1000	1000	1000	1000
Number of mechanical life			10000	10000	10000	10000	10000	10000
Dimensions	Wide(3P/4P)		140/185		140/185		210/280
	Long		255		255		327
	High		110		110		147
Mode of operation	Manual Direct operation、Rotate handle operation、Electric operating mechanism
Mounting method	Fixed type(front of plate)、Fixed type(rear of plate)、Plug-in(front of plate)、Plug-in(rear of plate)
